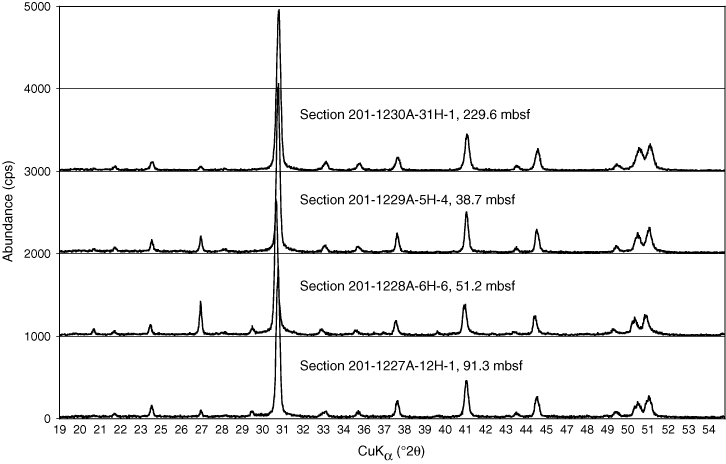

Figure F3. X-ray diffractograms of dolomite samples from Sites 1227, 1228, 1229, and 1230. Dolomite is the major compound in all samples. Narrow (104) peaks indicate very high stoichiometric ordering. Using the equation of Lumsden (1979), a slight enrichment of calcium was calculated for the dolomite phase.
