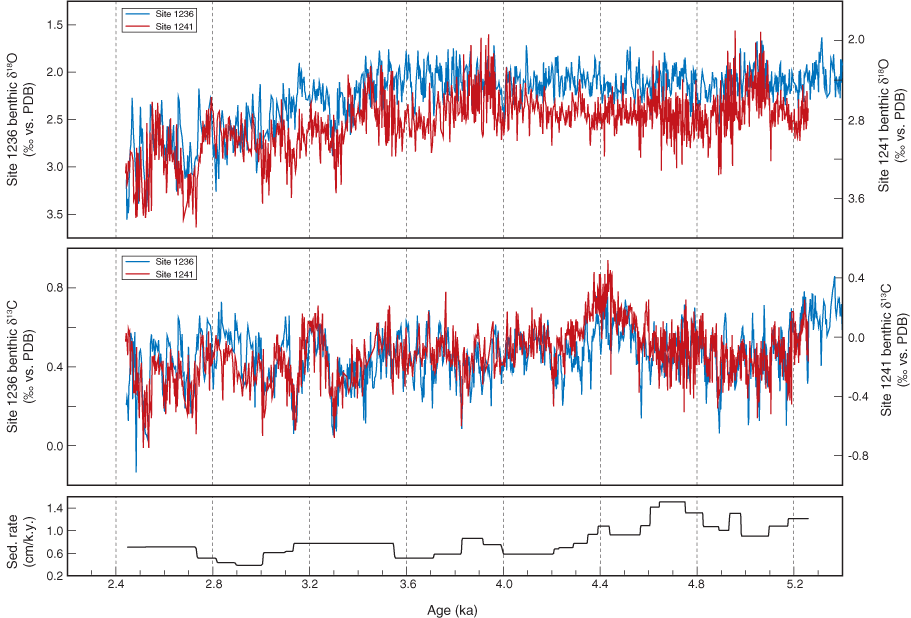

Figure F11.
Comparison of benthic
18
O and
13
C records from Sites 1241 and 1236 for the time interval from 2.4 to 5.3 Ma. PDB = Peedee belemnite.
18O and 13C records from Sites 1241 and 1236 for the time interval from 2.4 to 5.3 Ma. PDB = Peedee belemnite.
