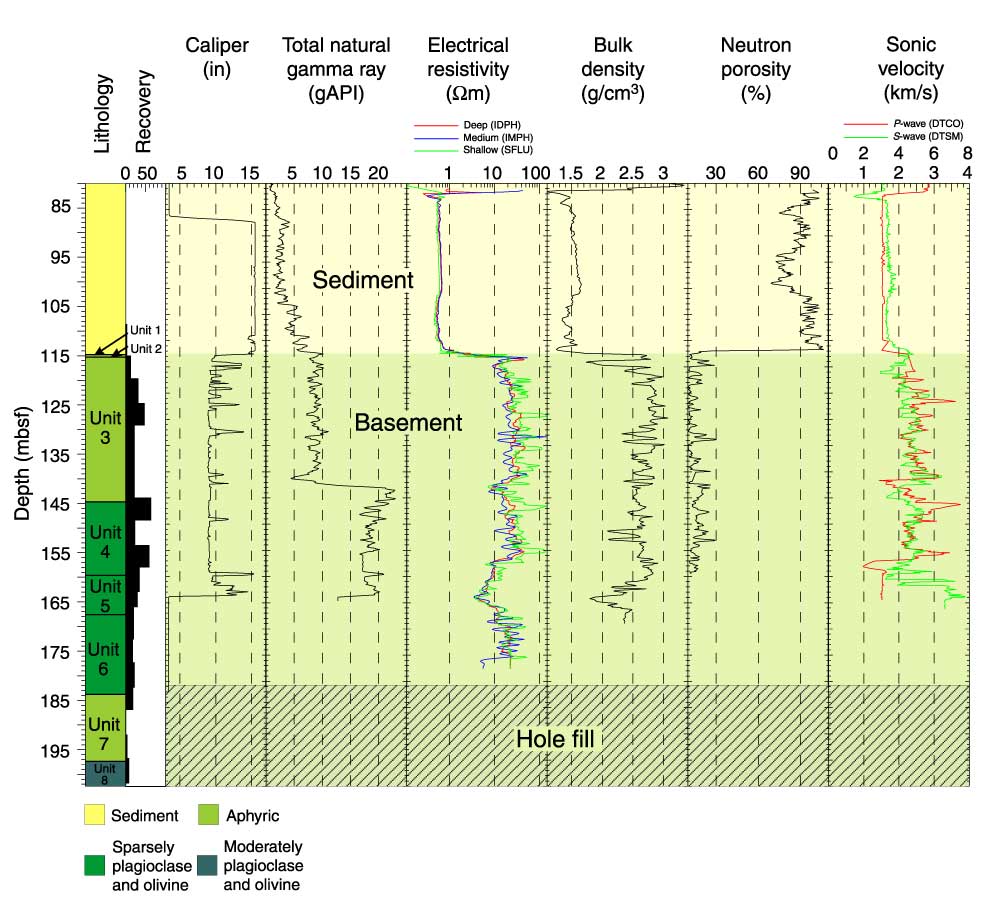

Figure F38. Composite plot of downhole measurements in the sediment and basement section in Hole 1243B. The core lithology has been shifted 6.3 m down to match the log-derived depths. gAPI = American Petroleum Institute gamma ray units, IDPH = deep induction phasor-processed resistivity, IMPH = medium induction phasor-processed resistivity, SFLU = spherically focused resistivity measurement, DTCO = T P-wave, DTSM = T S-wave.
