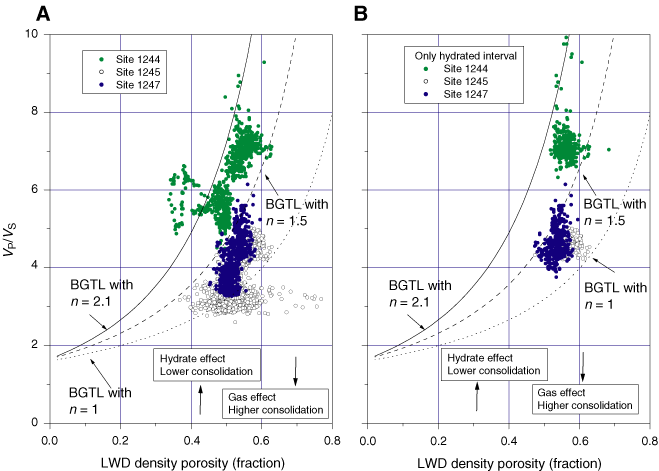

Figure F3. Measured P- and S-wave velocity ratios plotted against density-derived porosity with predicted velocity ratios calculated with various modified Biot-Gassmann theory by Lee (BGTL) parameters. A. All samples. B. Samples within the gas hydrate stability zone (gas hydrated interval). LWD = logging while drilling.
