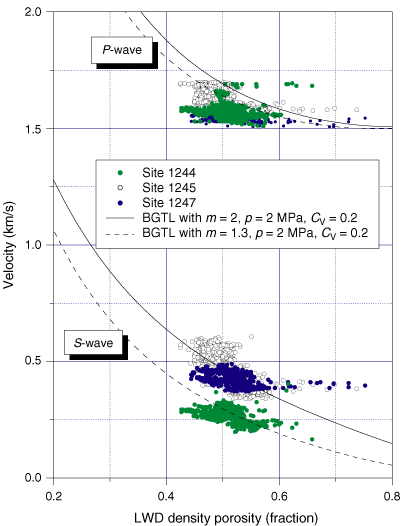

Figure F4. Measured P- and S-wave velocities with respect to density-derived porosity with predicted velocities from the modified Biot-Gassmann theory by Lee (BGTL) (baseline curves). Measured velocities for Sites 1244, 1245, and 1247 are from depths between 130 and 225, 130 and 295, and 130 and 190 mbsf, respectively. LWD = logging while drilling.
