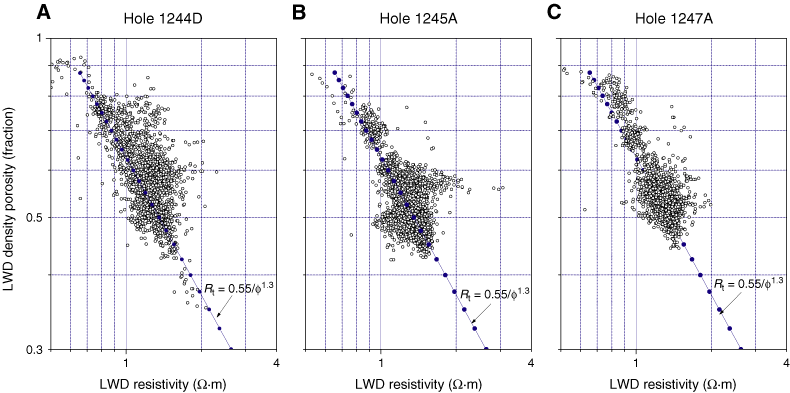

Figure F5. Measured electrical resistivity with respect to LWD density–derived porosity with calculated resistivity using the Archie relation. The depth ranges of measured resistivities for Sites 1244, 1245, and 1247 are between 0.2 and 372, 0.1 and 357, and 0.1 and 250 mbsf, respectively. A. Hole 1244D. B. Hole 1245A. C. Hole 1247A. LWD = logging while drilling.
