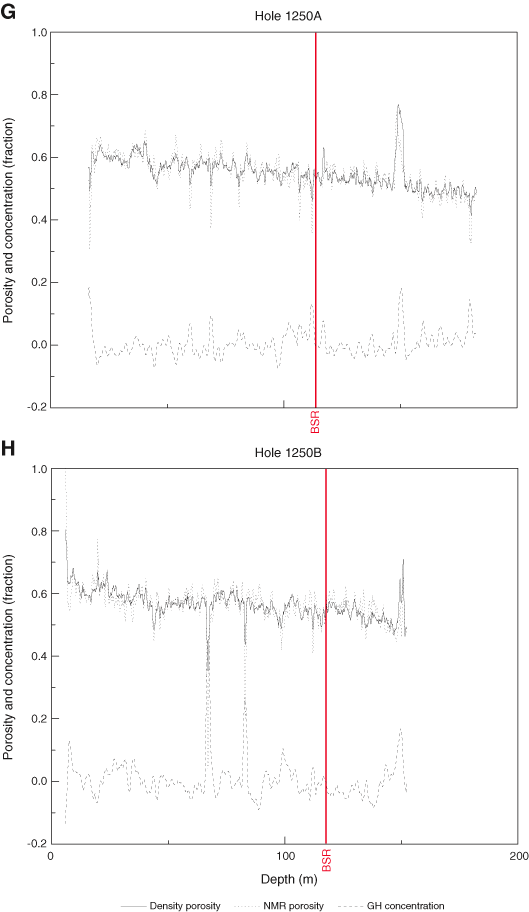

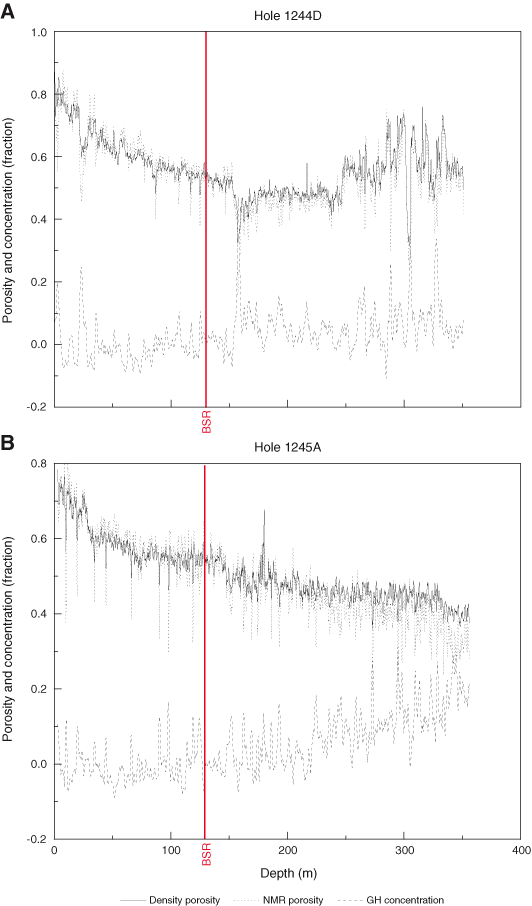

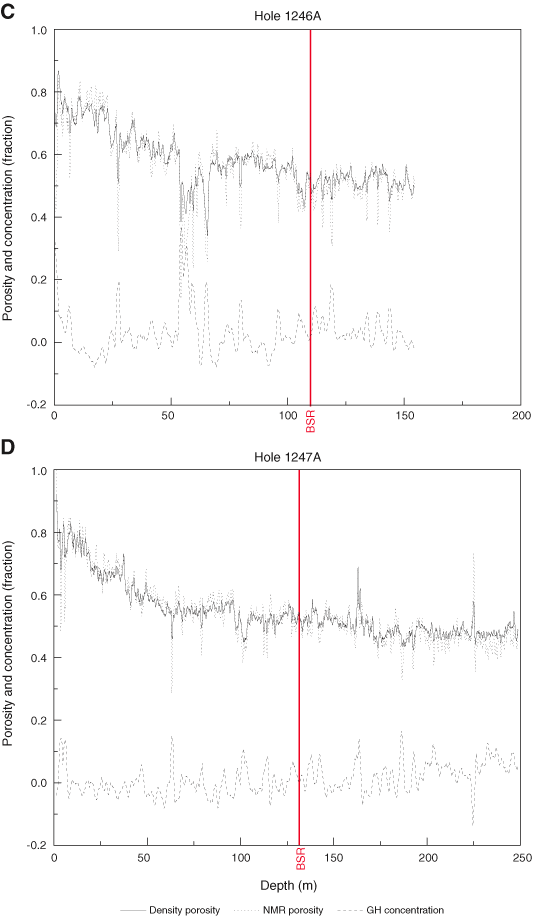

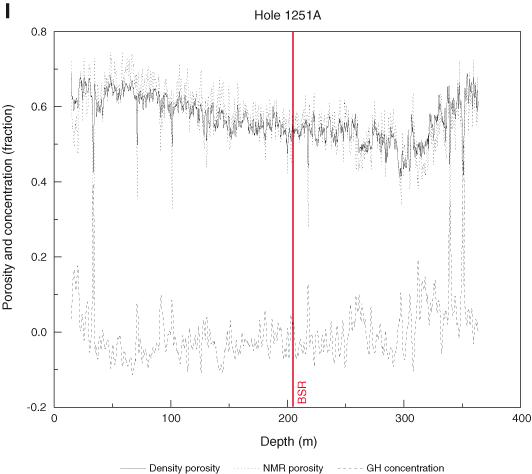

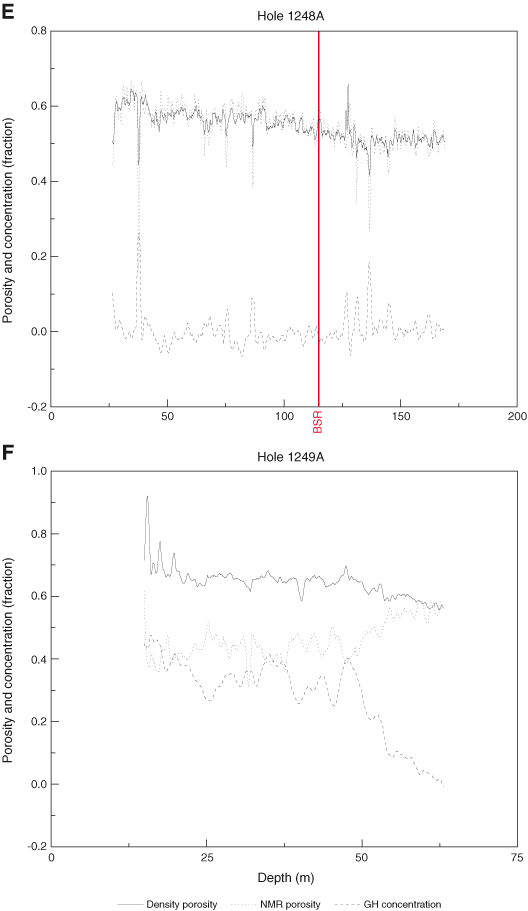

Figure F6. A–I. ProVision- and density log-derived porosities and derived gas hydrate (GH) saturations (shown as concentrations) for nine holes drilled on Hydrate Ridge during Leg 204 (Holes 1244D, 1245A, 1246A, 1247A, 1248A, 1249A, 1250A, 1250B, and 1251A). BSR = bottom-simulating reflector. NMR = nuclear magnetic resonance. (Continued on next four pages.)

Figure F6. A–I. ProVision- and density log-derived porosities and derived gas hydrate (GH) saturations (shown as concentrations) for nine holes drilled on Hydrate Ridge during Leg 204 (Holes 1244D, 1245A, 1246A, 1247A, 1248A, 1249A, 1250A, 1250B, and 1251A). BSR = bottom-simulating reflector. NMR = nuclear magnetic resonance.
