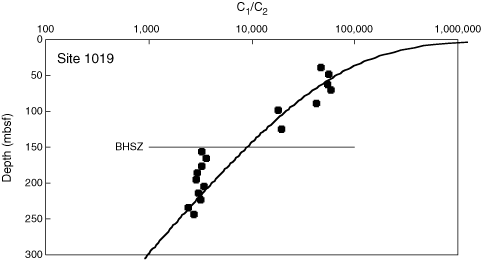

Figure F16. C1/C2 ratios of void gas samples from Eel River Basin (ODP Leg 169 Site 1019) shows offset at approximate depth of bottom simulating reflection and base of the gas hydrate stability zone (BHSZ).

Figure F16. C₁/C₂ ratios of void gas samples from Eel River Basin (ODP Leg 169 Site 1019) shows offset at approximate depth of bottom simulating reflection and base of the gas hydrate stability zone (BHSZ).
