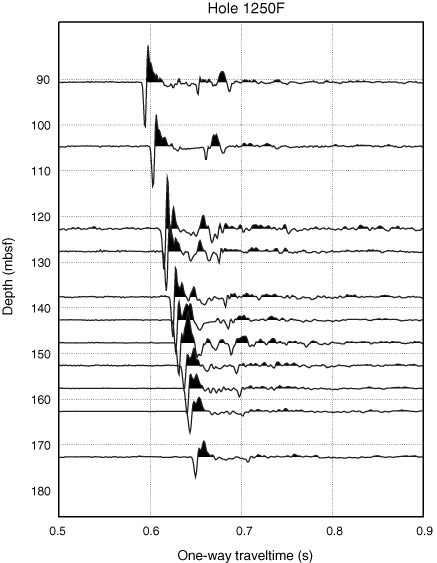

Figure F3. Stacked waveforms of the VSP recorded in Hole 1250F. The waveforms have not been corrected for the position of the source and the triggering delay, and the traveltime is not the actual transit time used in the TvD relationship.
