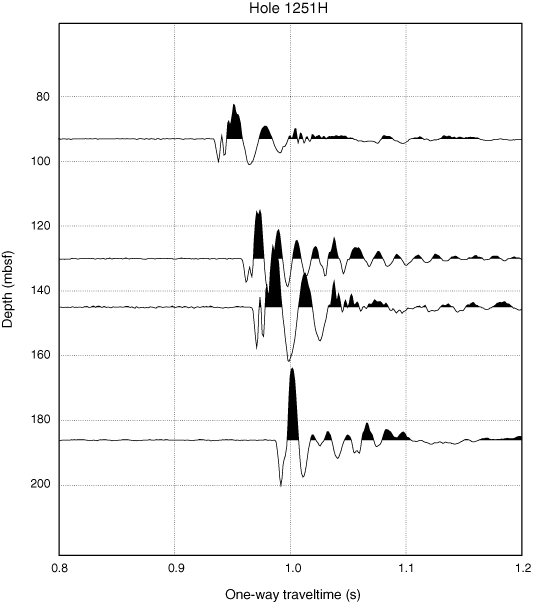

Figure F5. Stacked waveforms of the VSP recorded in Hole 1251H. The waveforms have not been corrected for the position of the source and the triggering delay, and the traveltime is not the actual transit time used in the TvD relationship.
