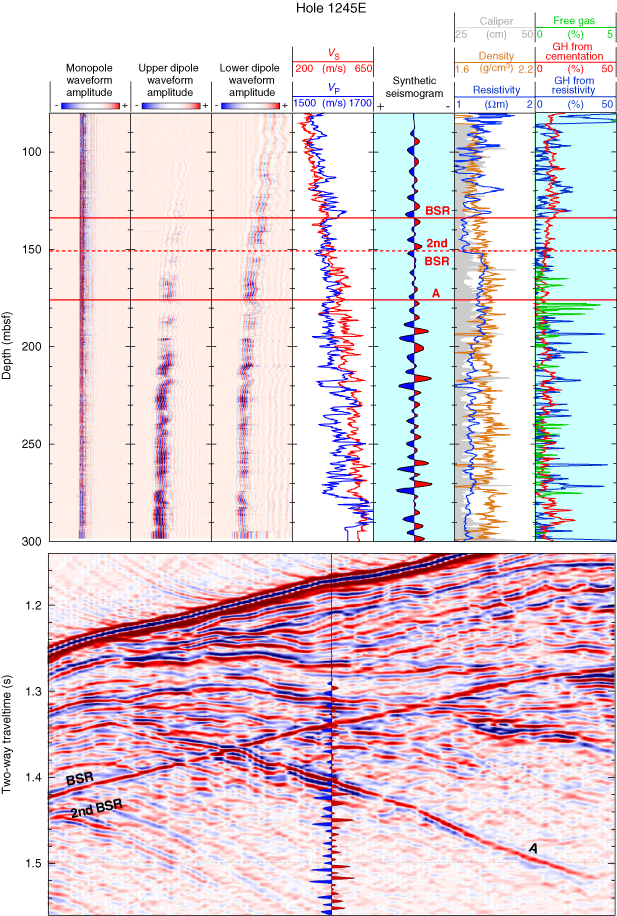

Figure F7. Wireline logs associated with the presence of gas hydrate (GH) in Hole 1245E. The synthetic seismogram and the gas hydrate concentration profiles were calculated from these logs. The synthetic seismogram is superimposed on a short east-west transect of the 3-D seismic survey for identification of the reflectors. BSR = bottom-simulating reflector, A = Horizon A.
