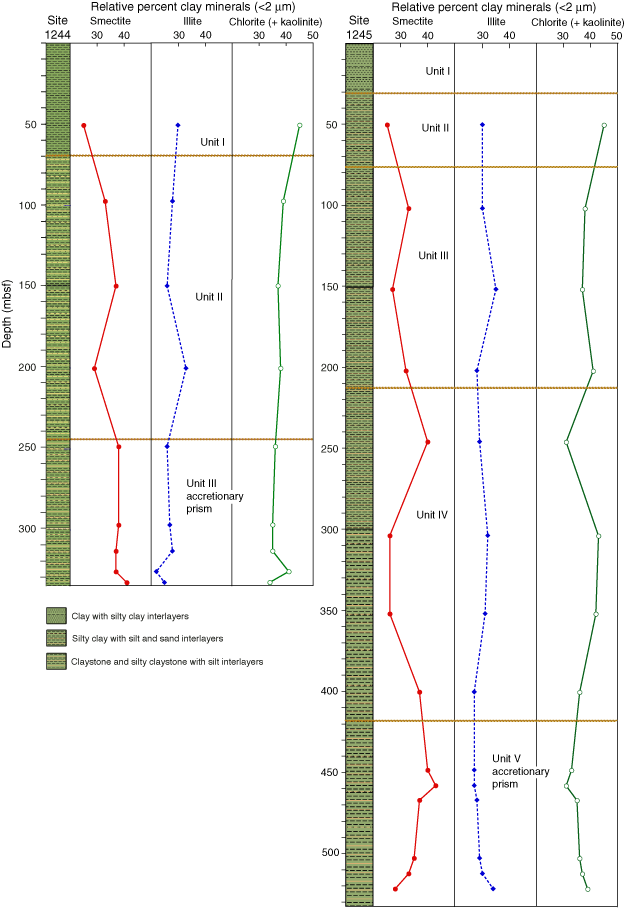

Figure F5. Relative abundances of smectite, illite, and chlorite (+ kaolinite) plotted as a function of depth at ODP Sites 1244 and 1245. See Figure F1 for locations and Table T1 for X-ray diffraction peak area values.

Figure F5. Relative abundances of smectite, illite, and chlorite (+ kaolinite) plotted as a function of depth at ODP Sites 1244 and 1245. See Figure F1 for locations and Table T1 for X-ray diffraction peak area values.
