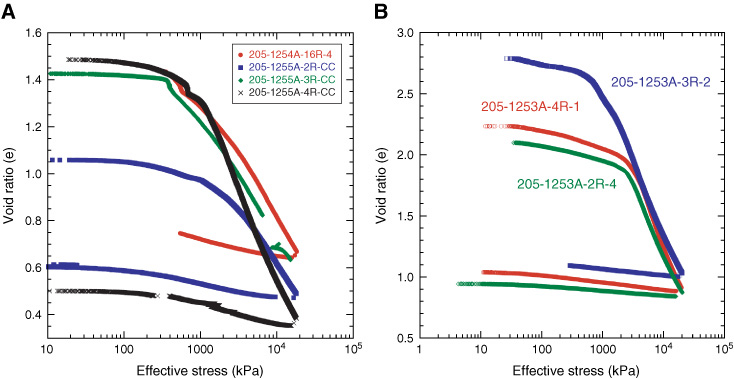

Figure F3. Consolidation results (stress-strain curves) including unloading where available. Slopes of virgin compression curves (Cc), elastic recompression/unloading curves, and values of Pc´ are determined from these data. A. Results for hemipelagic samples from Sites 1254 and 1255. B. Results for pelagic samples from Site 1253.

Figure F3. Consolidation results (stress-strain curves) including unloading where available. Slopes of virgin compression curves (C_c), elastic recompression/unloading curves, and values of P_c´ are determined from these data. A. Results for hemipelagic samples from Sites 1254 and 1255. B. Results for pelagic samples from Site 1253.
