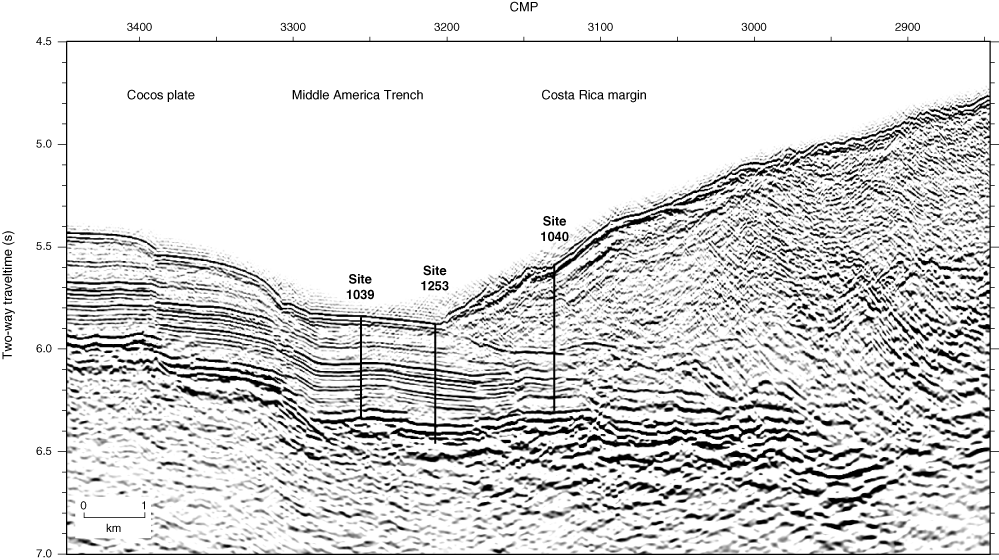

Figure F2. Migrated multichannel seismic Profile BGR-99-44 (C. Ranero and C. Reichert, pers. comm., 2001) across the Middle America Trench showing the general structure of the seaward side of the Middle America Trench, the trench itself, and the lowermost seaward part of the prism. CMP = common midpoint. Shot point numbers from multichannel seismic survey.
