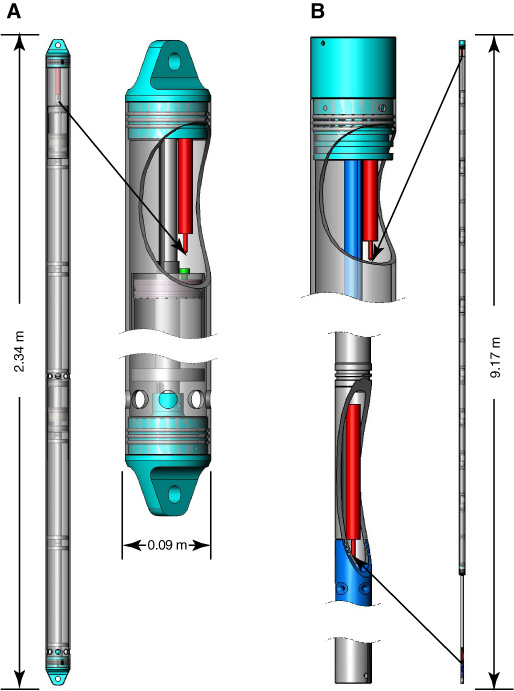

Figure F4. Construction sketches of the OsmoSamplers installed in (A) Hole 1253A and (B) Hole 1255A. Hole 1253A contains two identical OsmoSamplers with MTLs placed in the upper endcaps (cf. Fig. F5.) The OsmoSampler installed in Hole 1255A contains an MTL in the upper endcap and in the probe that samples the décollement zone.

Figure F4. Construction sketches of the OsmoSamplers installed in (A) Hole 1253A and (B) Hole 1255A. Hole 1253A contains two identical OsmoSamplers with MTLs placed in the upper endcaps (cf. Fig. F5.) The OsmoSampler installed in Hole 1255A contains an MTL in the upper endcap and in the probe that samples the décollement zone.
