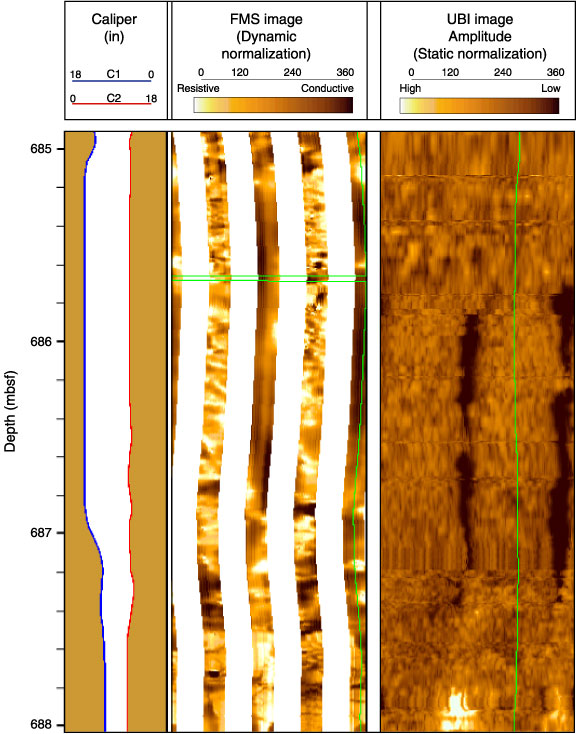

Figure F197. Formation MicroScanner (FMS) and Ultrasonic Borehole Imager (UBI) image between 685 and 688 mbsf. In this interval, the UBI images reveal a breakout represented by the two thick black lines on the UBI image.

Figure F197. Formation MicroScanner (FMS) and Ultrasonic Borehole Imager (UBI) image between 685 and 688 mbsf. In this interval, the UBI images reveal a breakout represented by the two thick black lines on the UBI image.
