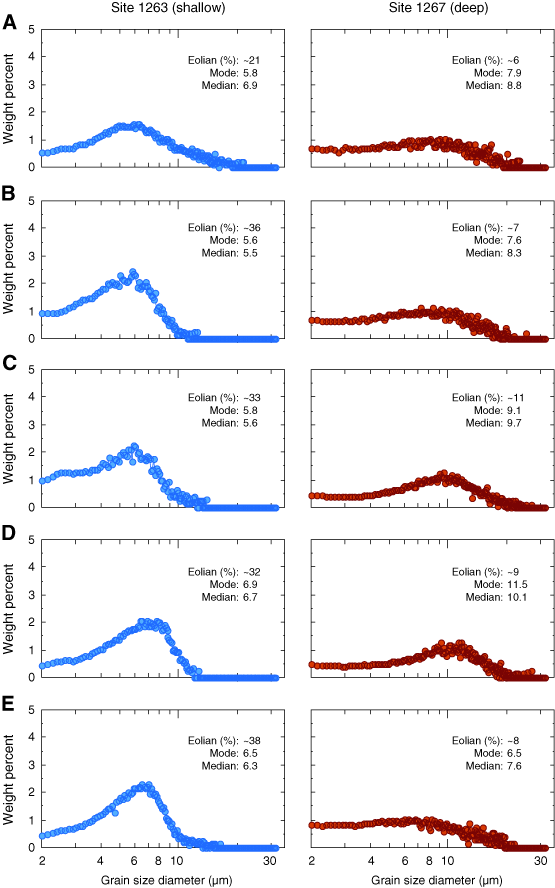

Figure F2. A–E. Site 1263 and Site 1267 grain-size distributions. Five sets of time coincident (less than ~16 k.y. difference) grain-size distributions are illustrated, such that each part contains one distribution from the shallower Site 1263 and one distribution from the deeper Site 1267. Eolian percent has been calculated after the two-component mixing model of Boven and Rea (1998).
