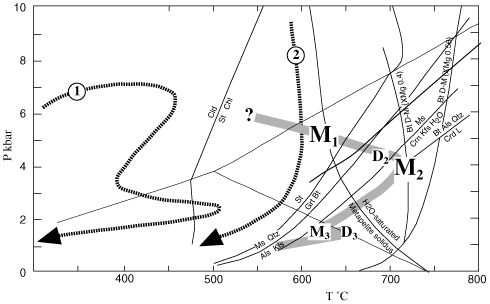

Figure 10. Inferred PT path for the Alboran high-grade schists and gneisses. The approximate location of the M1, M2, and M3 metamorphic events is indicated on the PT path. 1 = PT path for the Almanzora unit (eastern Alpujárrides) after Bakker et al. (1989). 2 = PT path for graphitic schists in the Torrox unit (Western Alpujárrides), after Monié et al. (1994). Bt + Als + Qtz + Vapor = Crd + Melt after Vielzeuf and Holloway (1988); Ms = Crn + Kfs + H2O after Spear and Parrish (1996). The other reaction curves as in Figure 8.

Figure 10. Inferred PT path for the Alboran high-grade schists and gneisses. The approximate location of the M₁, M₂, and M₃ metamorphic events is indicated on the PT path. 1 = PT path for the Almanzora unit (eastern Alpujárrides) after Bakker et al. (1989). 2 = PT path for graphitic schists in the Torrox unit (Western Alpujárrides), after Monié et al. (1994). Bt + Als + Qtz + Vapor = Crd + Melt after Vielzeuf and Holloway (1988); Ms = Crn + Kfs + H₂O after Spear and Parrish (1996). The other reaction curves as in Figure 8.
