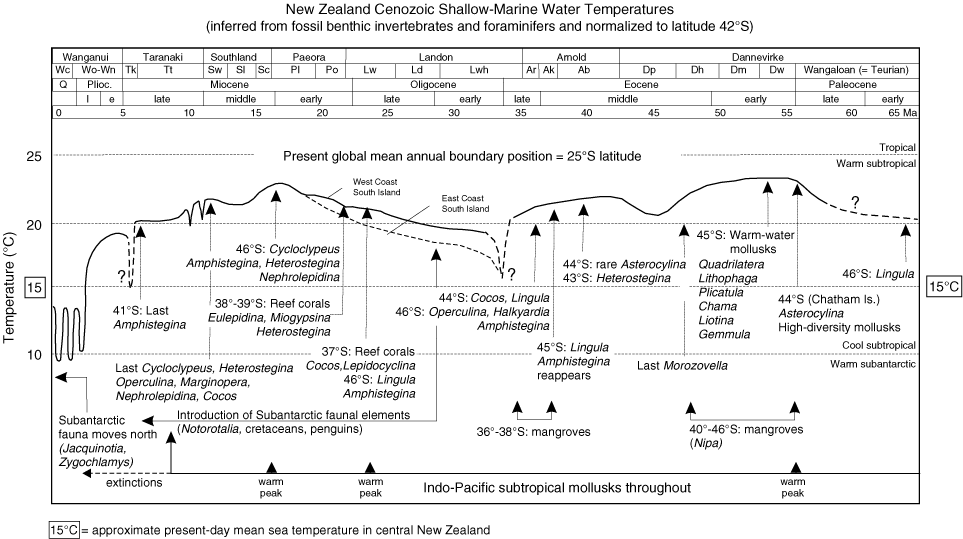

Figure F3. Summary diagram of the climatic history of the New Zealand region, based on the onland occurrence of stenothermal fossil flora and fauna (based on sources summarized in Hornibrook, 1992). Paleocene molluscan attributions at 45°S (Pentland Hills) are from Philip Maxell (pers. comm., 2003). See caption to Figure F6 for key to New Zealand biostratigraphic stage abbreviations.
