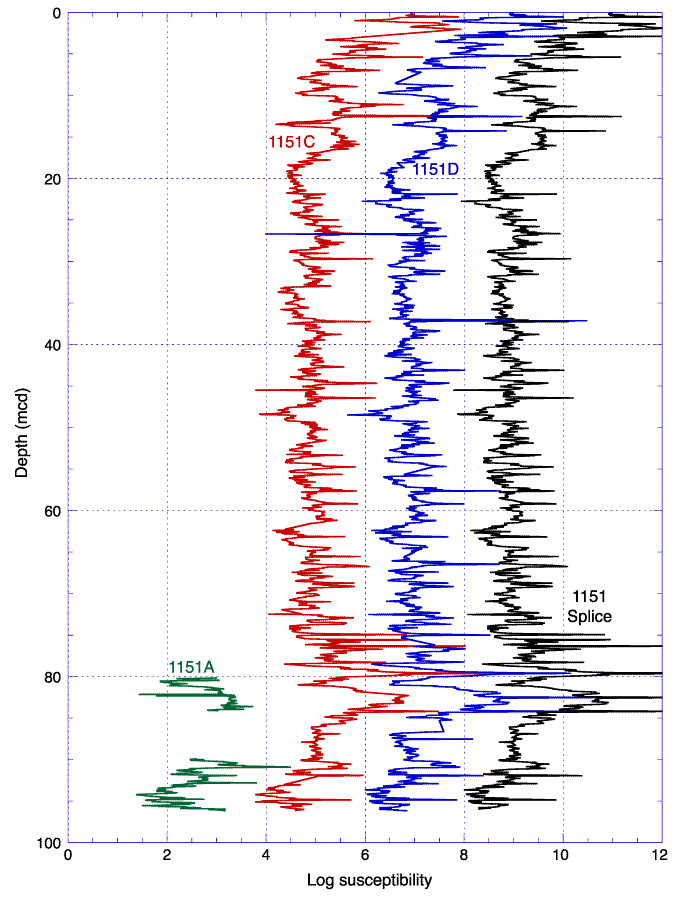

Figure F4. The natural log of the magnetic susceptibility (raw meter units) for Holes 1151A (bold green), 1151C (red), 1151D (blue), and the Site 1151 splice record (black) in the mcd scale. Integer values of +2, +4, and +6 were added to each data point from Holes 1151C and 1151D and for the spliced record, respectively, to separate data for the purposes of display. The depth correlation between data is visibly improved using the mcd scale as noted by comparison to Figure F2.
