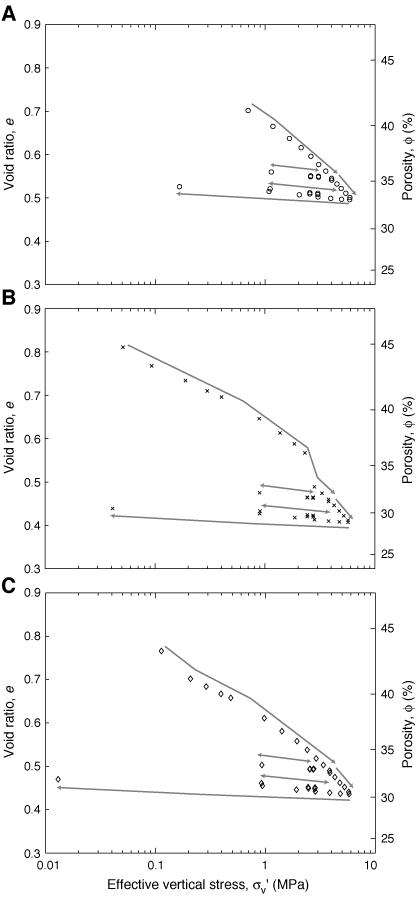

Figure F4. Deformation behavior for (A) Sample 194-1194A-8H-3, 135-137 cm, (B) Sample 194-1194A-8H-3, 138–140 cm, and (C) Sample 194-1194A-8H-3, 142–144 cm. Void ratio is plotted on a linear scale on the left y-axis and equivalent porosity is plotted on the right y-axis. Gray arrows illustrate loading/unloading/reloading paths. Raw data are provided in Tables T5, T6, and T7.
