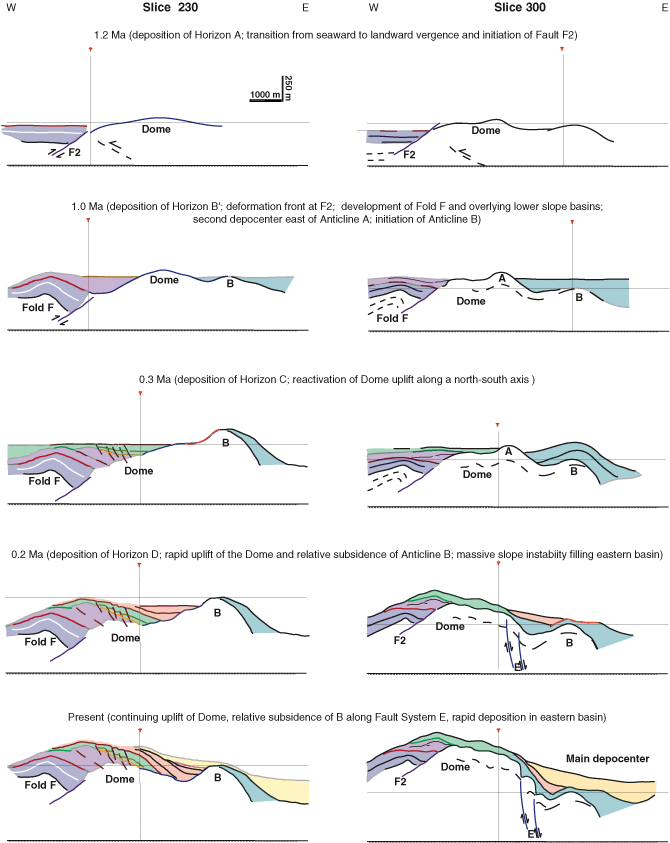

Figure F10. Sequence of reconstructed cross sections along east-west seismic Lines 230 and 300. Retrodeformation of the strata to their original geometry was achieved using rules of constant length and surface and vertical and horizontal reference pin lines (marked by a black lines and red nail). Color code and labels for structures are the same as in Figure F2, .

Figure F10. Sequence of reconstructed cross sections along east-west seismic Lines 230 and 300. Retrodeformation of the strata to their original geometry was achieved using rules of constant length and surface and vertical and horizontal reference pin lines (marked by a black lines and red nail). Color code and labels for structures are the same as in Figure F2.
